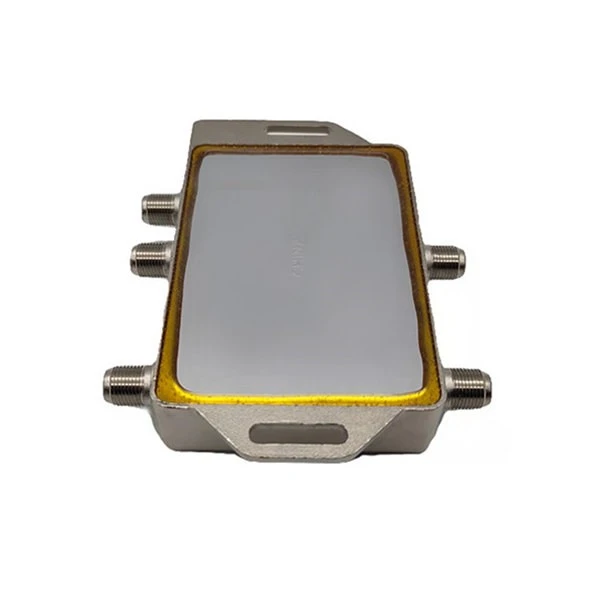

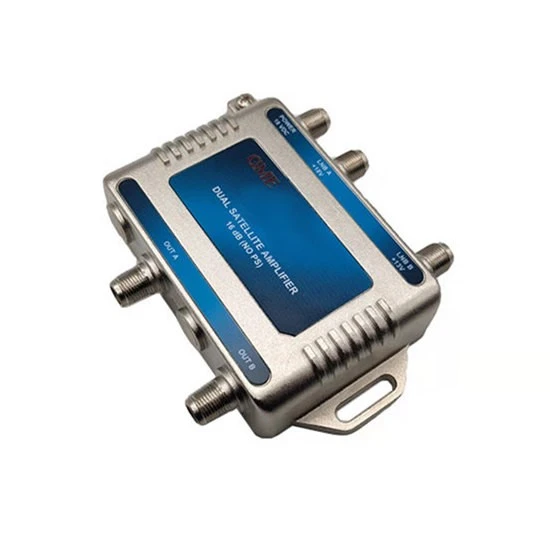

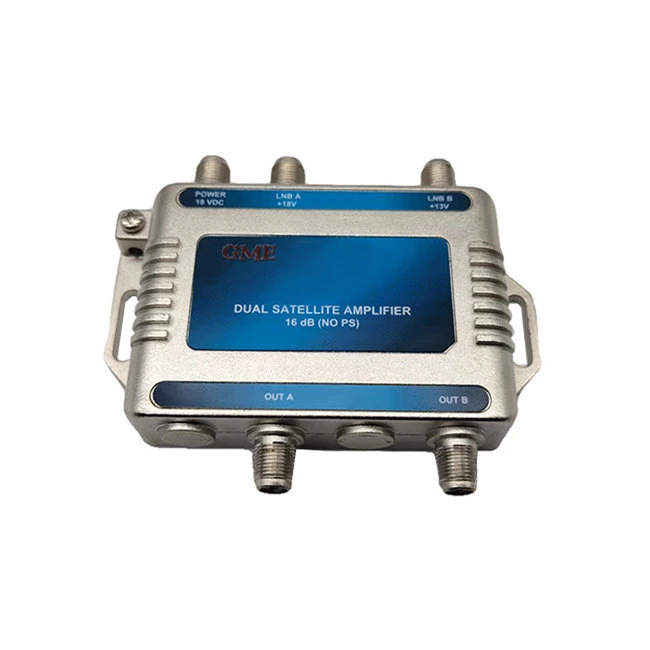

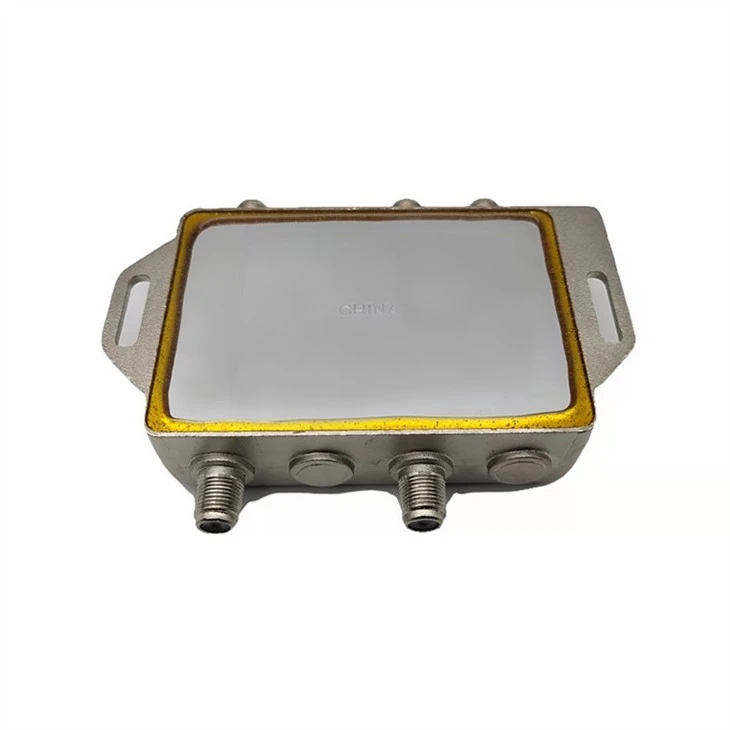

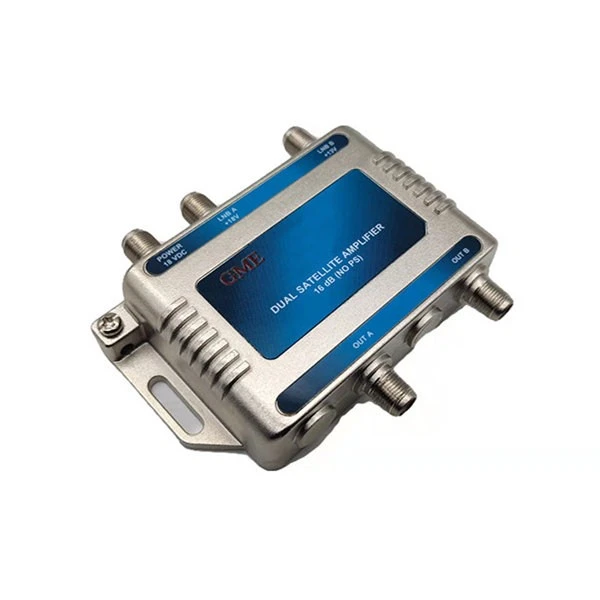

Dual Satellite If Amplifier

Kelib chiqqan joyi: Guangdong, Xitoy

Model raqami: GDAMP-025 (4216)

BUYUM

TIPIAL

QC LIMIT

TEST SHARTLARI

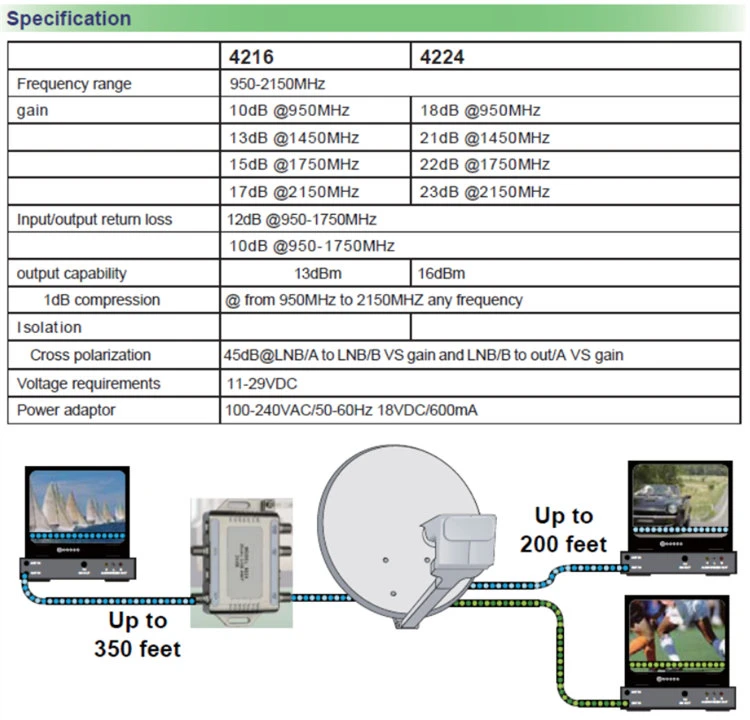

1. PASS BAND

950 ~ 2150 MGts

2. GAIN

10 dB

9 dB MIN

950 MGts chastotada

12dB

10 dB MIN

1200 MGts chastotada

13dB

11 dB MIN

1450 MGts chastotada

15dB

12 dB MIN

1750 MGts chastotada

17 dB

15 dB MIN

2150 MGts chastotada

3.QAYTISH YO'qotilishi (KIRISh)

- 14 dB

-12 dB MIN

950 ~ 1750 MGts

- 12 dB

-10 dB MIN

1750 ~ 2150 MGts

(chiqish)

- 15dB

- 12 dB MIN

950 ~ 1750 MGts

- 12 dB

- 10 dB MIN

1751 ~ 2150 MGts

4. Izolyatsiya (LNB/A TO LNB/B)

- 45 dB

- 40 dB MIN

950 ~ 1750 MGts

- 42 dB

- 38 dB MIN

1751 ~ 2150 MGts

(OUT TO OUT)

- 47 dB

- 40 dB MIN

950 ~ 1750 MGts

- 42 dB

- 38dB MIN

1751 ~ 2150 MGts

(KROSS POLARIZASYON: LNB/A TO OUTB VA GAIN VA LNB/B TO OUTA VS GAIN)

- 47 dB

- 43 dB MIN

950 ~ 1750 MGts

- 45 dB

- 40dB MIN

1751 ~ 2150 MGts

5. CHISHIRISH IMKONIYATI

13 dBm

10 dBm MIN

1dB SISISH

950 MGts dan 2150 MGts gacha har qanday chastotada

6. Shovqin FIGURU

7,2 dB

8,5 dBMAX

950-2150 MGts

7. LNB chiqish kuchlanishi

LNB A: +18VDC
LNB B: +13VDC

ADAPTERDA

8. Joriy iste'mol

150 mA

130-185 mA

18.0VDC da, LNB oqimini hisobga olmaganda.

9. ULANGICH

F TYPE AYOL

BARCHA PORT

10. IMPEDANS

75 OHM

BARCHA PORT
